Characteristic:
1. Smaller elongation rate

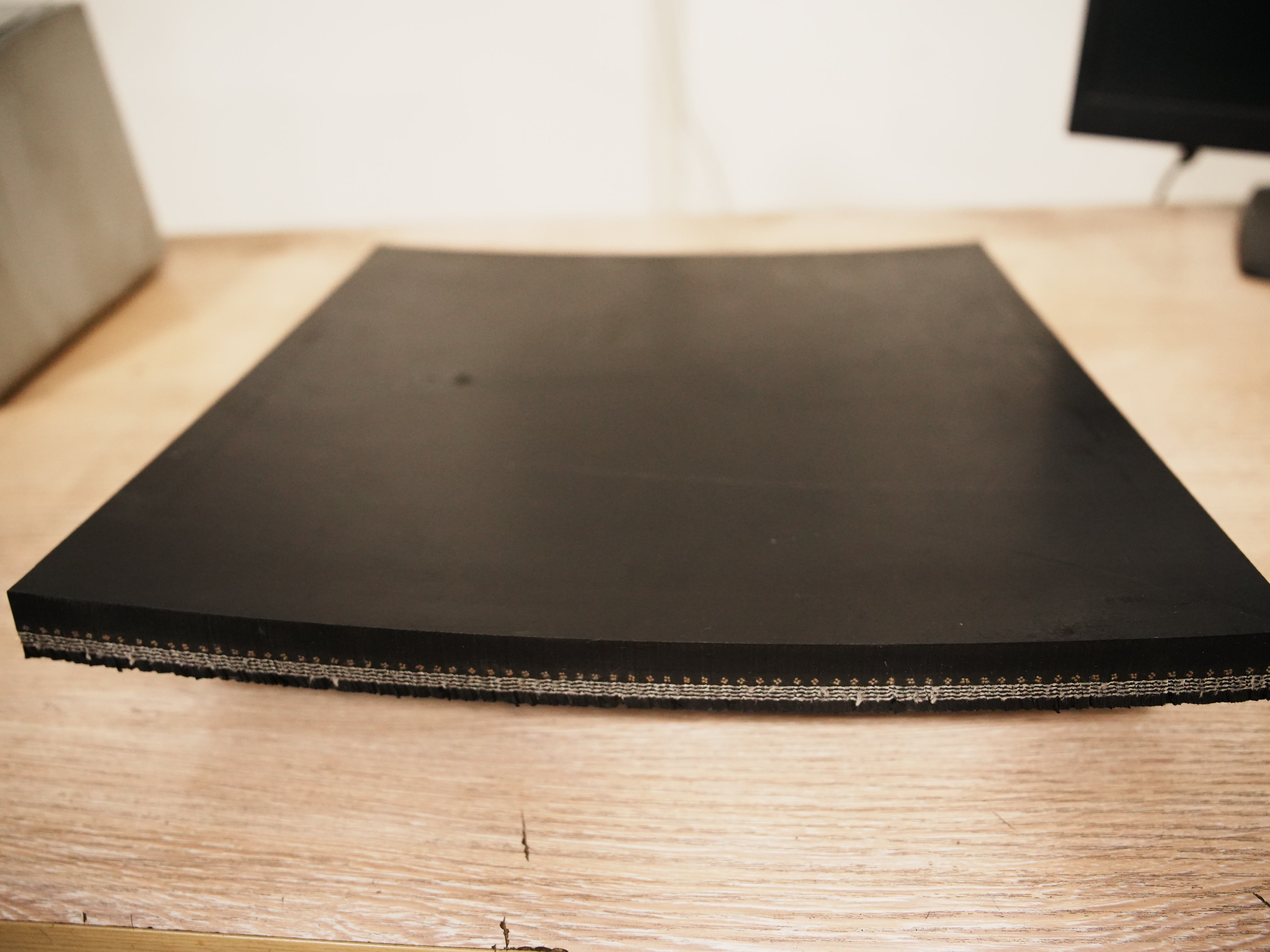

The design of the skeleton layer material fabric and the dipping method make the fabric core layered conveyor belt have less elasticity and permanent elongation. This can reduce the tension stroke and decrease the number of joints. You can also contact Hebei Jiuzhou Rubber to calculate elasticity and permanent elongation for specific conveying systems.
2. High modulus and high groove forming performance
High strength polyester fibers are used in the warp direction, and nylon fibers are used in the weft direction, which can provide the conveyor belt with high modulus and excellent grooving performance.
3. There are multiple options for the type and thickness of the cover adhesive
For different application scenarios, Jiuzhou Rubber Company offers cover rubber types and thicknesses that are heat-resistant, oil resistant, acid and alkali resistant, highly wear-resistant, scratch resistant, flame-retardant, and cold resistant to choose from.
Standards | Cover Rubber | Adhesion | ||||
Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
DIN 22102 | Mpa | % | mm3 | N/mm (≤1.5mm) | N/mm (>1.5mm) | N/mm |
DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
